產品展示PRODUCTS
I-Purge?充氣管吹掃系統
產品型號：I-Purge?
產品品牌：AQUASOL
產品簡介：
最靈活且適應性強的管道凈化解決方案
I-Purge?充氣管吹掃系統
 | 關于 革命性的、正在申請的I-Purge模塊化充氣氣囊系統是目前創新性和多功能性的管道排氣系統。I-Purge在管道排氣和焊接過程中創造了不透水密封，限度地減少了排氣，節省了時間和成本，同時實現了穩定且高質量的焊接效果。 該系統在美國制造，長期可重復使用氣囊系統使操作員能夠通過一個可互換方案滿足各種排氣需求。I-Purge配備了多項高度的功能，如快速連接接頭，可卡入并方便組裝和拆卸組件。I-Purge還配備了加長且高耐熱的束帶，使氣囊能夠放置在熱影響區之外，并足以適應任何預熱或高溫應用。 這些的功能使操作員能夠創建多種配置，包括單面管塞和減管器。氣囊尺寸從2英寸到70英寸（51-1778毫米）不等，可以單獨購買，也可以作為整套系統購買，如果需要更大尺寸或更換部件，這是一項明顯的優勢。 I-Purge非常適合制造車間，憑借其的設計超越現有技術，為所有管道清洗需求提供完整解決方案 |

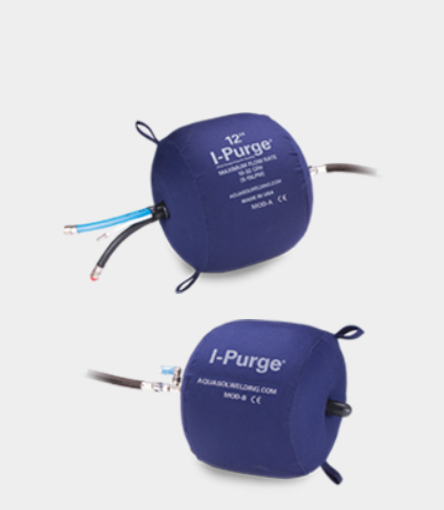

 | 特色與優勢 充氣水囊模塊A和B型
|

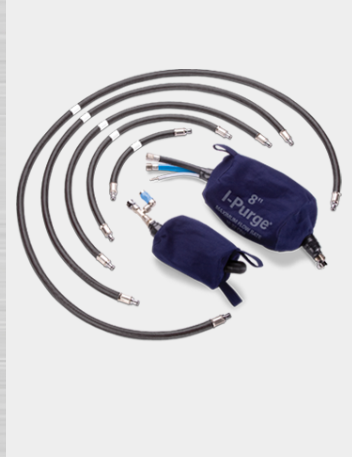

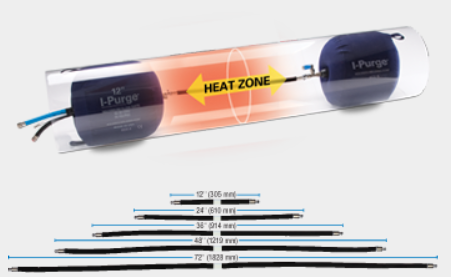

 | 高溫延長背帶
|

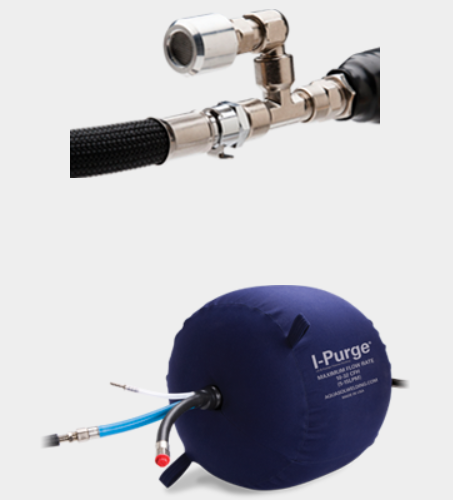

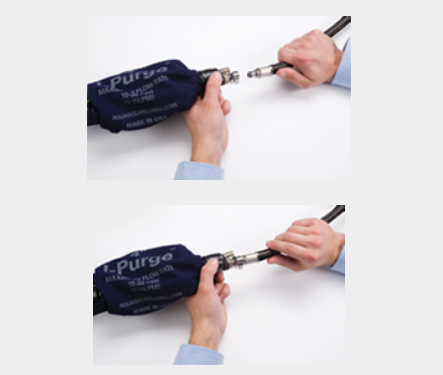

 | 快速連接可更換接頭
|
| 專有的泄壓閥
惰性氣體擴散器

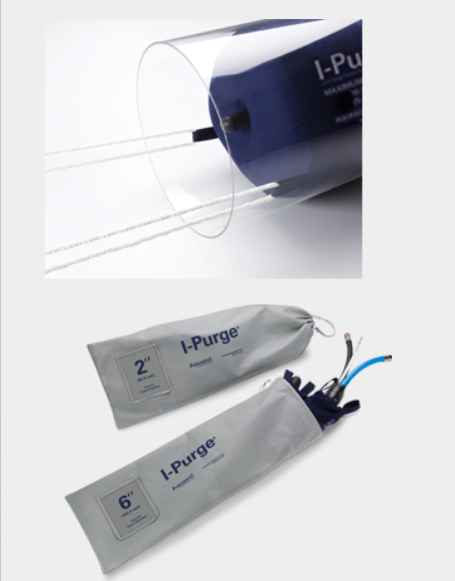

拉環
攜帶包
I-凈化減針

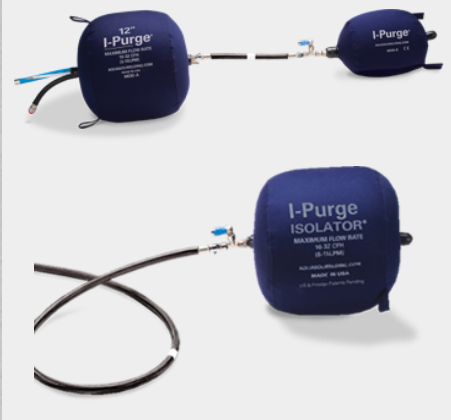

I-Purge 隔離器充氣管塞和單排氣囊
I-Purge? 隔離器適配器：充分利用我們的模塊化設計！ 將您的I-Purge?雙袋系統改造成單側隔離器，以應對復雜的焊接幾何設計。我們的I-Purge?和I-Purge ?X水囊均可轉換，采用創新的模塊化設計！ I-Purge? Mod-A 適配器： Mod-A I-Purge? 水囊的快速連接擴散器 I-Purge? Mod-B 適配器： 一根帶接頭的軟管，用來連接你的I-Purge? Mod B水囊和氬氣罐 |

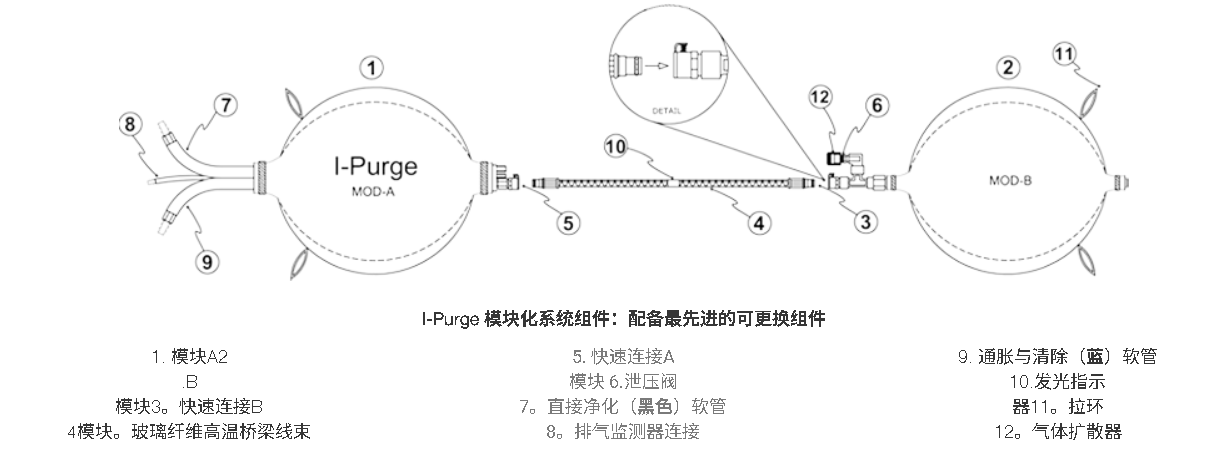

I-Purge的工作原理
型號與尺寸
Item No | Dimensions | Standard Harness Length | Description | ||
| English | Metric | English | Metric | ||
ABLD 2 | 2″ | 51 mm | 11″ | 279 mm | 2″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 3 | 3″ | 76 mm | 11″ | 279 mm | 3″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 4 | 4″ | 102 mm | 11″ | 279 mm | 4″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 5 | 5″ | 127 mm | 11″ | 279 mm | 5″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 6 | 6″ | 152 mm | 11″ | 279 mm | 6″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 8 | 8″ | 203 mm | 11″ | 279 mm | 8″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 10 | 10″ | 254 mm | 12″ | 305 mm | 10″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 12 | 12″ | 305 mm | 12″ | 305 mm | 12″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 14 | 14″ | 356 mm | 16″ | 406 mm | 14″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 16 | 16″ | 406 mm | 16″ | 406 mm | 16″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 18 | 18″ | 457 mm | 16″ | 406 mm | 18″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 20 | 20″ | 508 mm | 18″ | 457 mm | 20″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 22 | 22″ | 559 mm | 18″ | 457 mm | 22″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 24 | 24″ | 610 mm | 18″ | 457 mm | 24″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 26 | 26″ | 660 mm | 20″ | 509 mm | 26″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 28 | 28″ | 711 mm | 20″ | 509 mm | 28″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 30 | 30″ | 762 mm | 20″ | 509 mm | 30″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 32 | 32″ | 813 mm | 20″ | 509 mm | 32″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 34 | 34″ | 864 mm | 20″ | 509 mm | 34″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 36 | 36″ | 914 mm | 20″ | 509 mm | 36″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 38 | 38″ | 965 mm | 36″ | 914 mm | 38″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 40 | 40″ | 1016 mm | 36″ | 914 mm | 40″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 42 | 42″ | 1066 mm | 36″ | 914 mm | 42″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 44 | 44″ | 1117 mm | 36″ | 914 mm | 44″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 46 | 46″ | 1168 mm | 42″ | 1067 mm | 46″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 48 | 48″ | 1219 mm | 42″ | 1067 mm | 48″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 50 | 50″ | 1270 mm | 42″ | 1067 mm | 50″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 52 | 52″ | 1321 mm | 42″ | 1067 mm | 52″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 54 | 54″ | 1372 mm | 42″ | 1067 mm | 54″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 56 | 56″ | 1422 mm | 42″ | 1067 mm | 56″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 58 | 58″ | 1473 mm | 42″ | 1067 mm | 58″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 60 | 60″ | 1524 mm | 42″ | 1067 mm | 60″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 62 | 62″ | 1575 mm | 42″ | 1067 mm | 62″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 64 | 64″ | 1626 mm | 42″ | 1067 mm | 64″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 66 | 66″ | 1676 mm | 42″ | 1067 mm | 66″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 68 | 68″ | 1727 mm | 42″ | 1067 mm | 68″ I-Purge Double Purge Bag System with High Heat Harness |
ABLD 70 | 70″ | 1778 mm | 42″ | 1067 mm | 70″ I-Purge Double Purge Bag System with High Heat Harness |
I-Purge Isolator?
Item No | Dimensions | Description | |
English | metric | ||
ISO 2 | 2" | 51 mm | 2" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 3 | 3" | 76 mm | 3" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 4 | 4" | 102 mm | 4" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 5 | 5" | 127 mm | 5" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 6 | 6" | 152 mm | 6" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 8 | 8" | 203 mm | 8" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 10 | 10" | 254 mm | 10" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 12 | 12" | 305 mm | 12" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 14 | 14" | 356 mm | 14" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 16 | 16" | 406 mm | 16" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 18 | 18" | 457 mm | 18" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 20 | 20" | 508 mm | 20" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 22 | 22" | 559 mm | 22" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 24 | 24" | 610 mm | 24" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 26 | 26" | 660 mm | 26" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 28 | 28" | 711 mm | 28" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 30 | 30" | 762 mm | 30" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 32 | 32" | 813 mm | 32" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 34 | 34" | 864 mm | 34" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 36 | 36" | 914 mm | 36" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 38 | 38" | 965 mm | 38" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 40 | 40" | 1016 mm | 40" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 42 | 42" | 1066 mm | 42" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 44 | 44" | 1117 mm | 44" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 46 | 46" | 1168 mm | 46" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 48 | 48" | 1219 mm | 48" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 50 | 50" | 1270 mm | 50" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 52 | 52" | 1321 mm | 52" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 54 | 54" | 1372 mm | 54" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 56 | 56" | 1422 mm | 56" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 58 | 58" | 1473 mm | 58" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 60 | 60" | 1524 mm | 60" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 62 | 62" | 1575 mm | 62" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 64 | 64" | 1626 mm | 64" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 66 | 66" | 1676 mm | 66" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 68 | 68" | 1727 mm | 68" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
ISO 70 | 70" | 1778 mm | 70" I-Purge Isolator One-Sided Plug with 10' Hose and Valve |
Item No | Dimensions | Description | |
English | Metric | ||
ABLD-ELH-24 | 24" | 610 mm | 24" (2′) Extended Length High Heat Harness |
ABLD-ELH-36 | 36" | 914 mm | 36" (3′) Extended Length High Heat Harness |
ABLD-ELH-48 | 48" | 1219 mm | 48" (4′) Extended Length High Heat Harness |
ABLD-ELH-72 | 72" | 1828 mm | 72" (6′) Extended Length High Heat Harness |
ABLD-ELH-CUSTOM | Any Size | Any Size | Custom Lengths Available Upon Request |
ABLD-CNADP | NA | NA | 1/4" Female MPT to 1/4" Female BSPP Conversion |
